YSULASER

CNC Large Format Laser Cutting Machine.

数控大副面台式激光切割机

YS-8025NCW Series

CNC Large Format Laser Cutting Machine

数控大副面台式激光切割机

The machine adopts a welded steel plate bed, equipped with 35mm large-size P-level linear guides from HIWIN, an integrated crossbeam, 3-module precision helical gear ground rack and helical gear planetary reducer, ensuring high dynamic response and stable cutting accuracy of the machine.

Built for oversized plates with working areas from 8000 x 2500 mm up to 14000 x 3100 mm and laser power up to 40000W.

Available Models

YS-8025NCWYS-10025NCWYS-13025NCWYS-13031NCWYS-14031NCW

Technical Specifications · 技术参数

SpecificationsYS-8025NCWYS-10025NCWYS-13025NCWYS-13031NCWYS-14031NCW
Sheet size加工幅面 mm8000x250010000x250013000x250013000x310014000x3100
X-axis travel distanceX轴行程 mm805010050130501305014050
Y-axis travel distanceY轴行程 mm25302530253031303130
Z-axis travel distanceZ轴行程 mm120120120120120
Laser power激光器功率6000-12000W12000-40000W12000-40000W12000-40000W12000-40000W
Max. operating speed最大运行速度 m/min80-12080-12080-12080-12080-120
Max. acceleration最大加速度1.0-1.5G1.0-1.5G1.0-1.5G1.0-1.5G1.0-1.5G
Positioning accuracy定位精度 mm±0.03±0.03±0.03±0.03±0.03
Rep. positioning accuracy重复定位精度 mm±0.02±0.02±0.02±0.02±0.02

Product Gallery

CNC Large Format Laser Cutting Machine 1
CNC Large Format Laser Cutting Machine 2

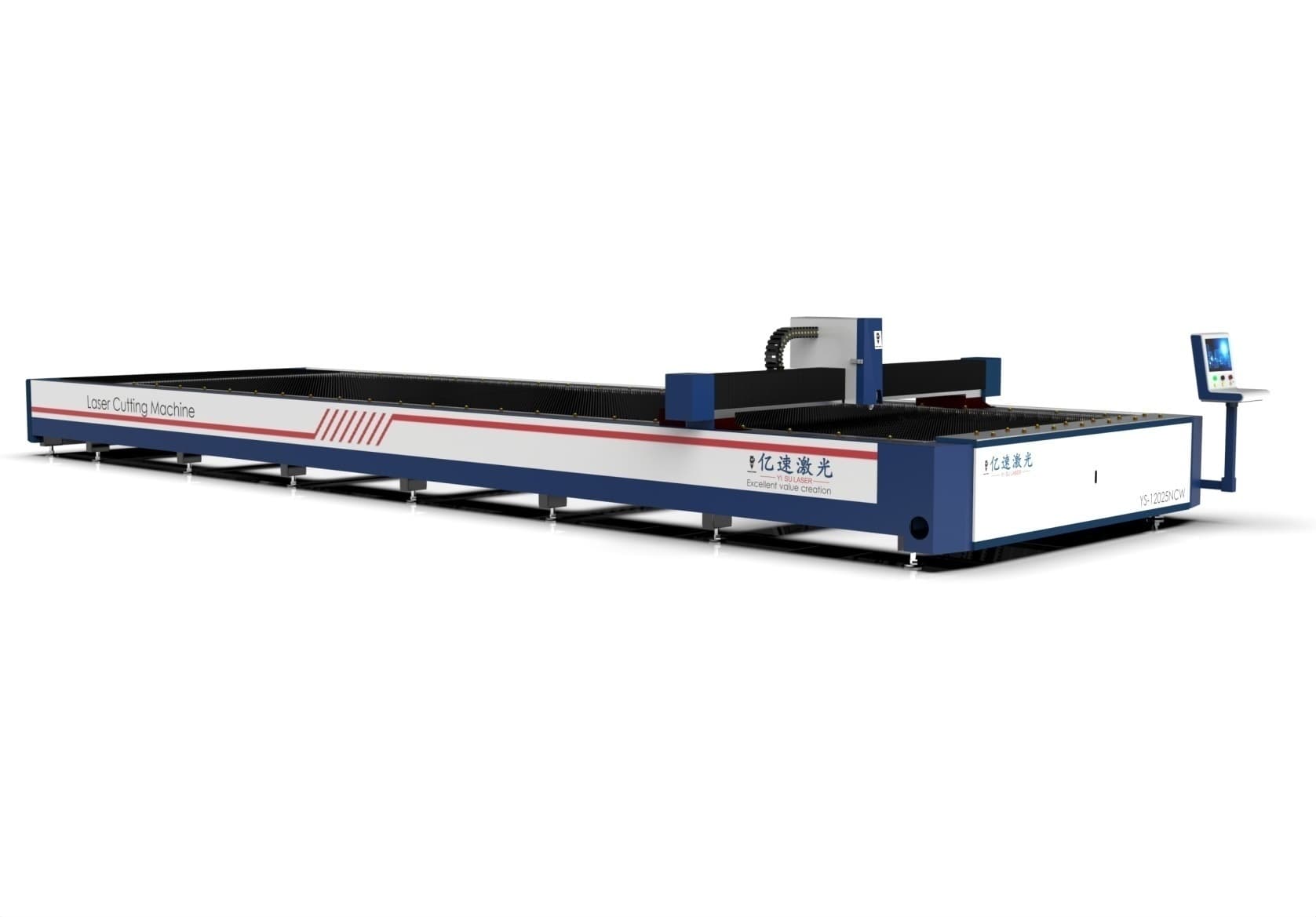

CNC Large Format Laser Cutting Machine 3
CNC Large Format Laser Cutting Machine 4
