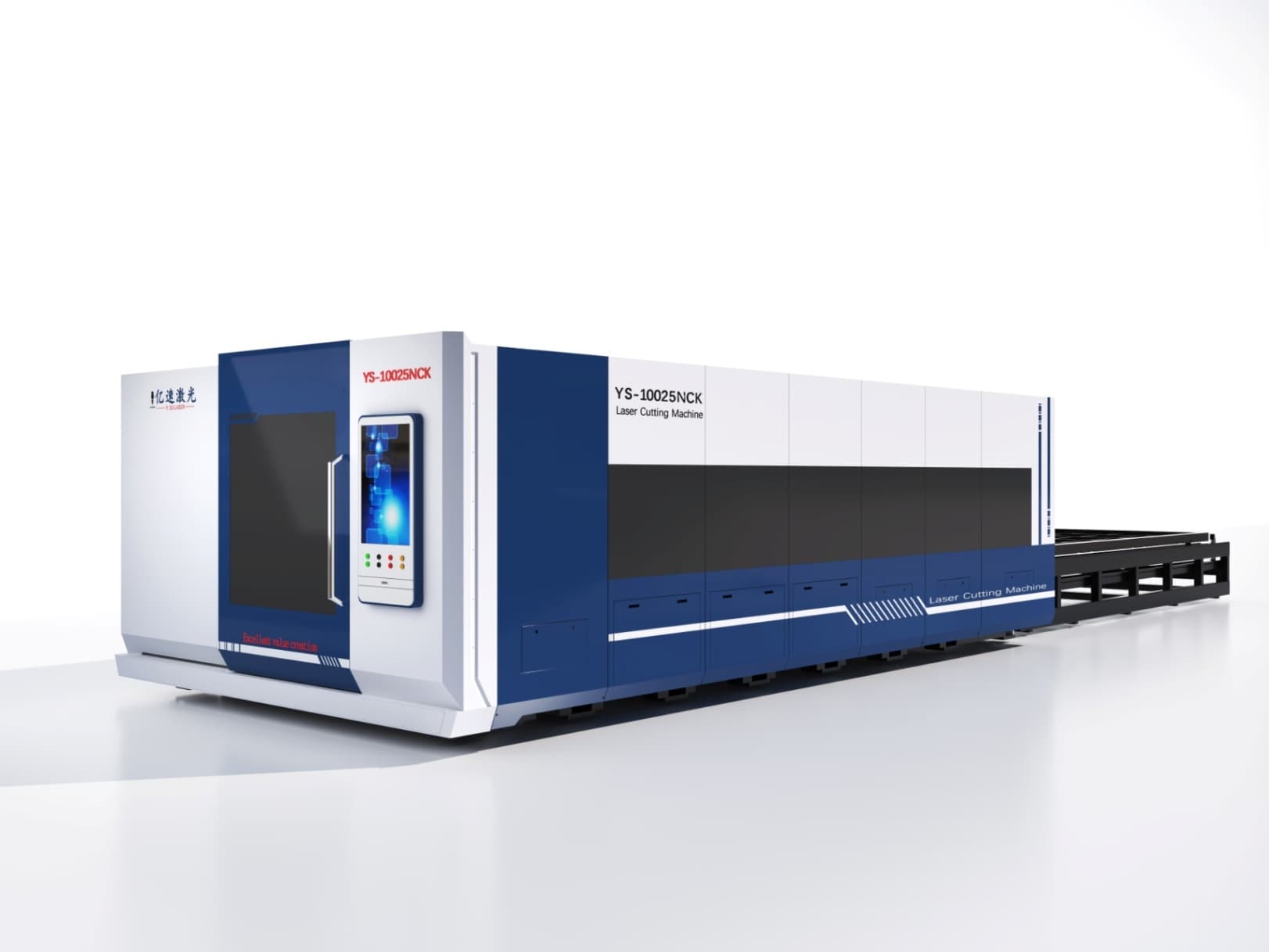

Full-Enclosure Exchange Table Fiber Laser Cutting Machine.
大包围交换台光纤激光切割机
Full-Enclosure Exchange Table Fiber Laser Cutting Machine
大包围交换台光纤激光切割机

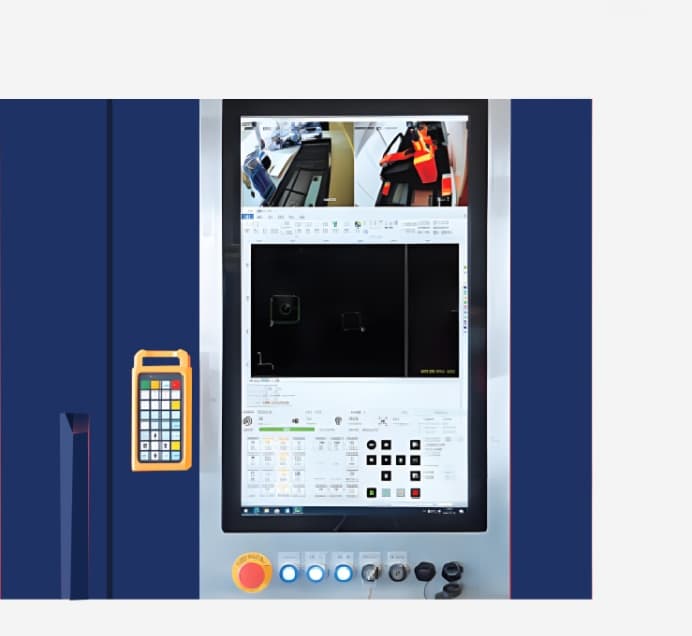

Equipped with a 27-inch industrial control system featuring a real-time monitoring function.
The machine adopts a welded steel plate integral bed and exchange table structure. It is equipped with 35mm large-size P-level linear guides from HIWIN, an integrated crossbeam, 3-module precision helical gear ground rack and helical gear planetary reducer, ensuring high dynamic response and stable cutting accuracy. Finite element analysis (FEM) is applied to optimize the shape and position of the reinforcing ribs of the castings, achieving optimal bed strength.
Available Models
Technical Specifications · 技术参数
| Specifications | YS-3015NCK | YS-4015NCK | YS-4020NCK | YS-6020NCK | YS-6025NCK |
|---|---|---|---|---|---|
| Sheet size加工幅面 mm | 3000x1500 | 4000x1500 | 4000x2000 | 6000x2000 | 6000x2500 |
| X-axis travel distanceX轴行程 mm | 3050 | 4050 | 4050 | 6050 | 6050 |
| Y-axis travel distanceY轴行程 mm | 1530 | 1530 | 2030 | 2030 | 2530 |
| Z-axis travel distanceZ轴行程 mm | 120 | 120 | 120 | 120 | 120 |
| Laser power激光器功率 | 1500-6000W | 1500-6000W | 1500-6000W | 1500-6000W | 1500-6000W |
| Max. operating speed最大运行速度 m/min | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 |
| Max. acceleration最大加速度 | 0.8-1.2G | 0.8-1.2G | 0.8-1.2G | 0.8-1.2G | 0.8-1.2G |
| Positioning accuracy定位精度 mm | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Rep. positioning accuracy重复定位精度 mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
Product Gallery
CNC Desktop Fiber Laser Cutting Machine
CNC Large Format Laser Cutting Machine
Full-Enclosure Exchange Table Fiber Laser Cutting Machine
Integrated Tube Plate Fiber Laser Cutting Machine
Get a Fiber Laser Cutting Machine Quotation
Tell us your sheet size, material and thickness. Our engineers will recommend the right model — from 1500W desktop cutters to 40000W large-format systems.
