Integrated Tube Plate Fiber Laser Cutting Machine.
管板一体光纤激光切割机
YS-3015NCF Series

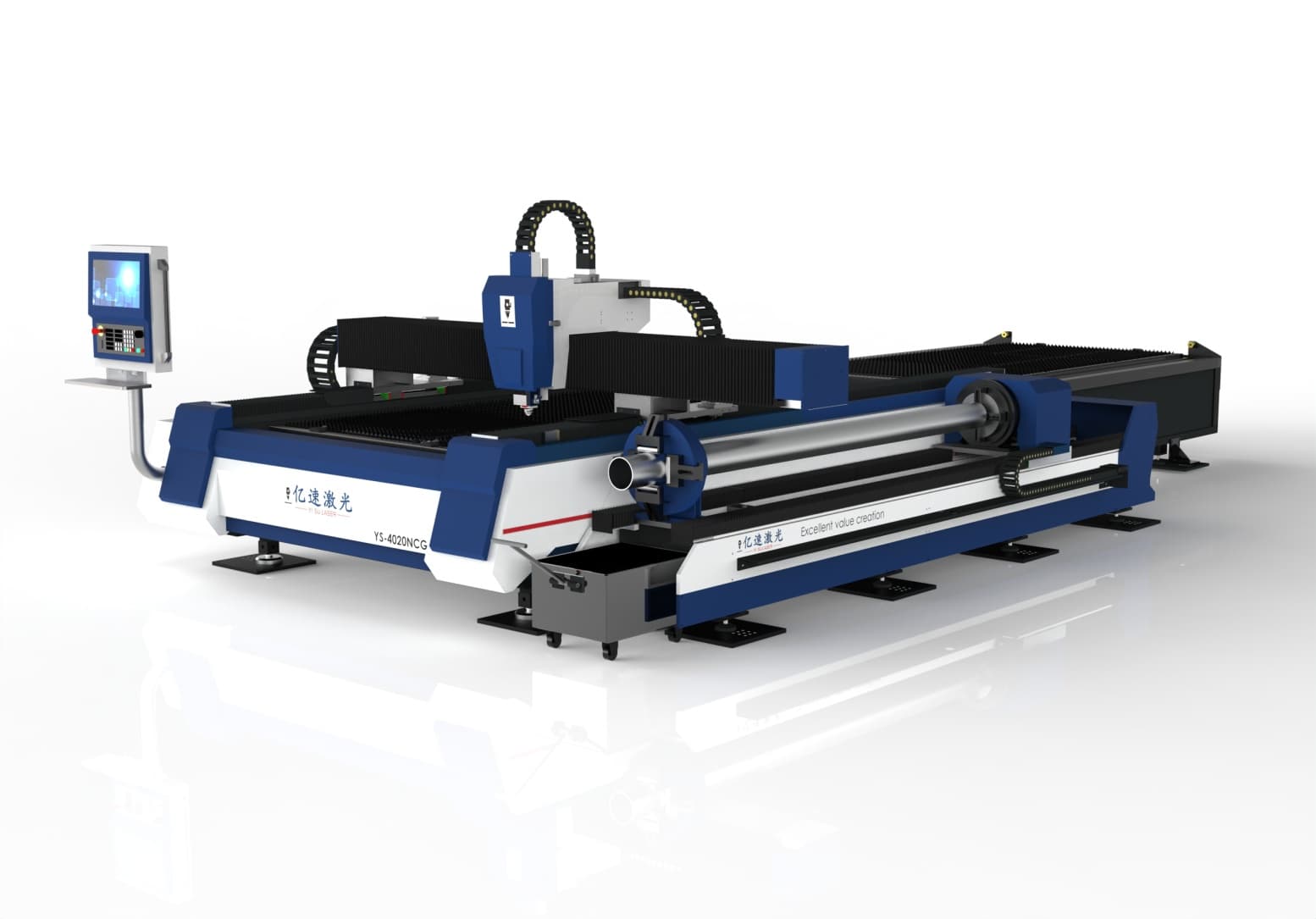

Integrated Tube Plate Fiber Laser Cutting Machine
管板一体光纤激光切割机
The dual-system configuration of one machine enables simultaneous processing of sheet materials and pipes, meeting the diverse processing demands of customers and enhancing their market competitiveness.
The machine features a welded steel plate bed, equipped with HIWIN P-level linear guides, an integrated crossbeam, precision helical gear ground racks and helical gear planetary reducers, ensuring high dynamic response and stable cutting accuracy.
Available Models
YS-3015NCFYS-4015NCFYS-4020NCFYS-6020NCFYS-6025NCF
Technical Specifications · 技术参数
| Specifications | YS-3015NCF | YS-4015NCF | YS-4020NCF | YS-6020NCF | YS-6025NCF |
|---|---|---|---|---|---|
| Sheet size加工幅面 mm | 3000x1500 | 4000x1500 | 4000x2000 | 6000x2000 | 6000x2500 |
| X-axis travel distanceX轴行程 mm | 3050 | 4050 | 4050 | 6050 | 6050 |
| Y-axis travel distanceY轴行程 mm | 1530 | 1530 | 2030 | 2030 | 2530 |
| Z-axis travel distanceZ轴行程 mm | 120 | 120 | 120 | 120 | 120 |
| Laser power激光器功率 | 1500-6000W | 1500-6000W | 1500-6000W | 1500-6000W | 1500-6000W |
| Max. operating speed最大运行速度 m/min | 80-120 | 80-120 | 80-120 | 80-120 | 80-120 |
| Max. acceleration最大加速度 | 0.8-1.2G | 0.8-1.2G | 0.8-1.2G | 0.8-1.2G | 0.8-1.2G |
| Positioning accuracy定位精度 mm | ±0.03 | ±0.03 | ±0.03 | ±0.03 | ±0.03 |
| Rep. positioning accuracy重复定位精度 mm | ±0.02 | ±0.02 | ±0.02 | ±0.02 | ±0.02 |
